by CoDe ReD CrYsTaL (4 Submissions)
Category: Graphics
Compatability: Visual Basic 3.0
Difficulty: Advanced
Date Added: Wed 3rd February 2021
Rating:
(3 Votes)

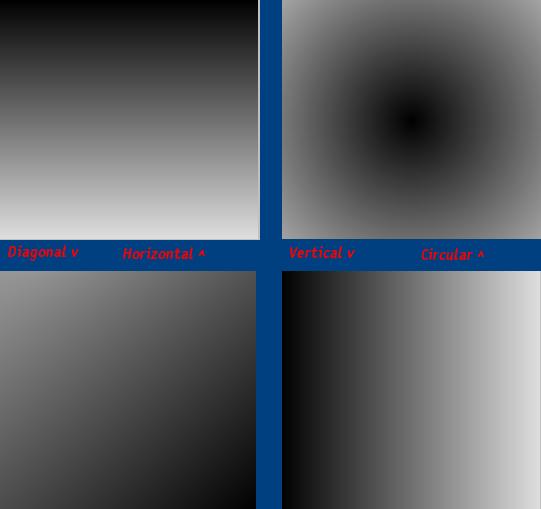

Look at the screen shot for all the possible gradients. You can choose the color, kind, and the end color. Worth checking out!
API DeclarationsAll coding by hand
VBcoders'Make all kinds of gradients
Function GradientMake(red As Integer, blue As Integer, green As Integer, endcolor As Integer, fill As Integer, Optional X As Integer, Optional Y As Integer)
'The object- tested with picture boxes too
Set gradienta = Me
'Choose the fill type
Select Case fill
'Horizontal
Case 1
'Draw a line with color decreasing each time
For i = 0 To gradienta.ScaleHeight - 1
'This chooses the color decrease amount
grcomponent = i * endcolor / gradienta.ScaleHeight
'This chooses the color for the line
rgbcolor = RGB(grcomponent + red, grcomponent + green, grcomponent + blue)
'Draw the next line
gradienta.Line (0, i)-(gradienta.ScaleWidth - 1, i), rgbcolor
'Now get ready for the next line
Next
'Vertical
Case 2
'Draw a line with color decreasing each time
For i = 0 To gradienta.ScaleWidth - 1
'This chooses the color decrease amount
grcomponent = i * endcolor / gradienta.ScaleWidth
'This chooses the color for the line
rgbcolor = RGB(grcomponent + red, grcomponent + green, grcomponent + blue)
'Draw the next line
gradienta.Line (i, 0)-(i, gradienta.ScaleWidth - 1), rgbcolor
'Now get ready for the next line
Next
'Circular
Case 3
'If no optional Y then set it to the middle
If Y = 0 Then Y = gradienta.ScaleHeight / 2
'If no optional X then set it to the middle
If X = 0 Then X = gradienta.ScaleWidth / 2
'if there was an optional X then set the difference so the gradient takes up the area used
If X <> (gradienta.ScaleWidth / 2) Then xx = X + ((gradienta.ScaleHeight / 2) - X)
'if there was an optional Y then set the difference so the gradient takes up the area used
If Y <> (gradienta.ScaleHeight / 2) Then xy = Y + ((gradienta.ScaleWidth / 2) - Y)
'Draw a circle with color decreasing each time
For i = 0 To gradienta.ScaleHeight + xx + xy
'This chooses the color decrease amount
grcomponent = i * endcolor / gradienta.ScaleHeight
'This chooses the color for the line
rgbcolor = RGB(grcomponent + red, grcomponent + green, grcomponent + blue)
'Draw the next circle
gradienta.Circle (X, Y), i, rgbcolor
'Now get ready for the next circle
Next
Case 4
'initialize xx
xx = 1
'Use pathagrian's therom to find the diaginal of the area used
pathagrian = Sqr((gradienta.ScaleHeight * gradienta.ScaleHeight) + (gradienta.ScaleWidth * gradienta.ScaleWidth))
'Draw a line with color decreasing each time
For i = 0 To pathagrian
'set the X point for the diganal line
xc = (gradienta.ScaleWidth - i) * 2
'set the Y point for the diganal line
xd = (gradienta.ScaleHeight - i) * 2
'This chooses the color decrease amount
grcomponent = i * endcolor / pathagrian
'This chooses the color for the line
rgbcolor = RGB(grcomponent + red, grcomponent + green, grcomponent + blue)
'Draw the next line
gradienta.Line (xc, 0)-(0, xd), rgbcolor
'Now get ready for the next line
Next
'end the select case for the fill type
End Select
End Function
