by Tom Pydeski (16 Submissions)
Category: Complete Applications
Compatability: VB Script
Difficulty: Advanced
Date Added: Wed 3rd February 2021
Rating:
(7 Votes)
This one is mostly for Controls Engineers.
Emerson Control Techniques manufactures Servo drives that communicate via the ModBus Protocol.
This was and old GWBasic version of the protocol that I think I got from Taylor Software 10 years ago.

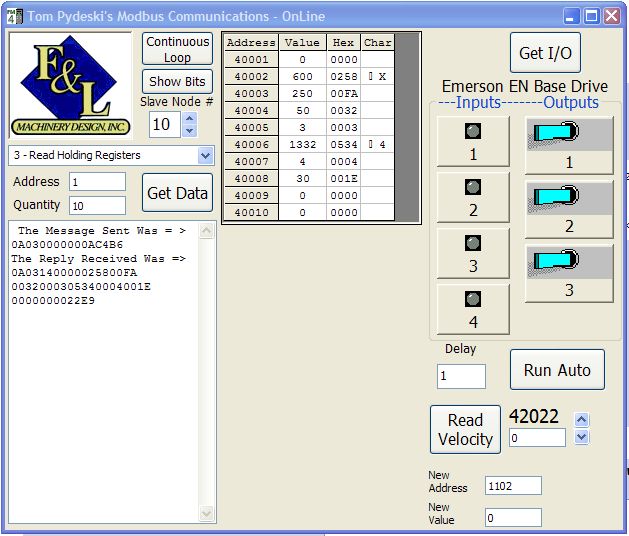

I have adapted it for VB 6.0 (Win XP is my OS) using flexgrid to display the register contents. I also set this demo up to poll the physical I/O and velocity of an Emerson EN-208 Base drive. It can be adapted to communicate with any serial device that uses the ModBus Protocol.
Inputs
Enter the Node address; starting address; and quantity of registers to be read.
Assumes
Don't try to run this program unless you are connected to a valid ModBus device.
Code Returns
The contents of the queried registers/inputs/outputs.
Side Effects
I did not do a lot of commenting on this, so be warned that you may not understand some sections...
Also, I am running on WinXP, so the beep function will not work on Non-NT OS's.
API DeclarationsNTBeep and SendMessageBynum
