by pietro ing. cecchi (8 Submissions)
Category: Graphics
Compatability: Visual Basic 5.0
Difficulty: Advanced
Date Added: Wed 3rd February 2021
Rating:
(3 Votes)
SUPERLINE - Awesome! Draws even thick lines in dashes and dots!

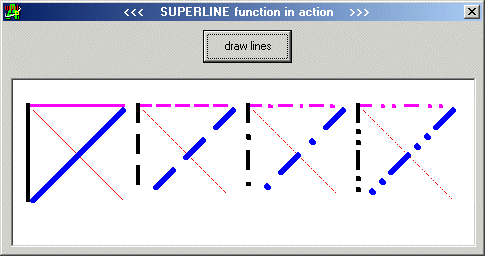

SEE SCREENSHOT
Keywords: graphics, graph, shape, rectangle, ellipse, polyline, polygon, border, borderwidth,
solid, dash, dot, dashdot, dashdotdot, drawwidth, drawstyle, drawmode, gdi
Assumes
See Line method for Form or Picture.
SUPERLINE is just the same, BUT thick lines
can be drawn with dashes and dots (Line method can't).
Side Effects
no side effect possible, safest code
API DeclarationsPrivate Declare Function MoveToEx Lib "gdi32" (ByVal hdc As Long, ByVal x As Long, ByVal y As Long, lpPoint As POINTAPI) As Long
Private Declare Function LineTo Lib "gdi32" (ByVal hdc As Long, ByVal x As Long, ByVal y As Long) As Long
Private Declare Function GetDC Lib "user32" (ByVal hwnd As Long) As Long
Private Declare Function ReleaseDC Lib "user32" (ByVal hwnd As Long, ByVal hdc As Long) As Long
Private Declare Function CreatePen Lib "gdi32" (ByVal nPenStyle As Long, ByVal nWidth As Long, ByVal crColor As Long) As Long
Private Declare Function SelectObject Lib "gdi32" (ByVal hdc As Long, ByVal hObject As Long) As Long
Private Declare Function DeleteObject Lib "gdi32" (ByVal hObject As Long) As Long
VBcoders'++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
'+ +
'+ Published on Planet-Source-Code the 11th of september 2002 +
'+ +
'+ by Pietro Cecchi, [email protected] +
'+ +
'+ SUPERLINE - Awesome! Draws even thick lines in dashes and dots! +
'+ Function DrawLine(ByVal isHwnd As Long, +
'+ ByVal isX1 As Long, ByVal isY1 As Long, +
'+ ByVal isX2 As Long, ByVal isY2 As Long, +
'+ ByVal isColor As Long, +
'+ ByVal isStyle As PenStyle, +
'+ ByVal isWidth As Long) +
'+ Enjoy! +
'+ +
'++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
Option Explicit
Private Type POINTAPI
x As Long
y As Long
End Type
Private Declare Function MoveToEx Lib "gdi32" (ByVal hdc As Long, ByVal x As Long, ByVal y As Long, lpPoint As POINTAPI) As Long
Private Declare Function LineTo Lib "gdi32" (ByVal hdc As Long, ByVal x As Long, ByVal y As Long) As Long
Private Declare Function GetDC Lib "user32" (ByVal hwnd As Long) As Long
Private Declare Function ReleaseDC Lib "user32" (ByVal hwnd As Long, ByVal hdc As Long) As Long
Private Declare Function CreatePen Lib "gdi32" (ByVal nPenStyle As Long, ByVal nWidth As Long, ByVal crColor As Long) As Long
Private Declare Function SelectObject Lib "gdi32" (ByVal hdc As Long, ByVal hObject As Long) As Long
Private Declare Function DeleteObject Lib "gdi32" (ByVal hObject As Long) As Long
'Pen Styles
Public Enum PenStyle
PS_SOLID = 0 'vbBSSolid-1
PS_DASH = 1 'vbBSDash-1
PS_DOT = 2 'vbBSDot-1
PS_DASHDOT = 3 'vbBSDashDot-1
PS_DASHDOTDOT = 4 'vbBSDashDotDot-1
End Enum
Public Function SUPERLINE(ByVal isHwnd As Long, ByVal isX1 As Long, ByVal isY1 As Long, ByVal isX2 As Long, ByVal isY2 As Long, ByVal isColor As Long, ByVal isStyle As PenStyle, ByVal isWidth As Long) As Integer
Dim ishDC, hpen, hpenOLD, isPoint As POINTAPI
Dim dashlen, dotlen, dashdotintervallen, linelen
Dim a, segmentlen, segmenthowmany, segmentoflineX, intervallenonlineX, segmentoflineY, intervallenonlineY
Dim isarc, istn, dashprojectionX, dashprojectionY
Dim dotprojectionX, dotprojectionY
Dim dashdotintervalprojectionX, dashdotintervalprojectionY
Dim minlength As Integer
Dim commandstring As String
Dim movetoX, movetoY, movetoXsave, movetoYsave
Dim isTMP As Single
If isY1 > isY2 Then
'shaffle end points
isTMP = isX1
isX1 = isX2
isX2 = isTMP
isTMP = isY1
isY1 = isY2
isY2 = isTMP
End If
'INPUT CONTROL
Select Case isWidth
Case 1 To 20
Case Else
isWidth = 1
End Select
ishDC = GetDC(isHwnd)
hpen = CreatePen(PS_SOLID, isWidth, isColor) 'note: always solid
hpenOLD = SelectObject(ishDC, hpen)
dashlen = 4 * isWidth
dotlen = 1 'note: dot len always 1
dashdotintervallen = 2 * isWidth
Select Case isStyle
Case PS_SOLID
MoveToEx ishDC, isX1, isY1, isPoint
LineTo ishDC, isX2, isY2
SUPERLINE = 1 'OK
Case PS_DASH, PS_DOT, PS_DASHDOT, PS_DASHDOTDOT
Select Case isStyle
Case PS_DASH
'- -
minlength = 2 * dashlen + 1 * dashdotintervallen
commandstring = "- "
segmentlen = 1 * dashlen + 1 * dashdotintervallen
Case PS_DOT
'. .
minlength = 2 * dotlen + 1 * dashdotintervallen
commandstring = ". "
segmentlen = 1 * dotlen + 1 * dashdotintervallen
Case PS_DASHDOT
'- . -
minlength = 2 * dashlen + 1 * dotlen + 2 * dashdotintervallen
commandstring = "- . "
segmentlen = 1 * dashlen + 1 * dotlen + 2 * dashdotintervallen
Case PS_DASHDOTDOT
'- . . -
minlength = 2 * dashlen + 2 * dotlen + 3 * dashdotintervallen
commandstring = "- . . "
segmentlen = 1 * dashlen + 2 * dotlen + 3 * dashdotintervallen
End Select
linelen = CInt(Sqr((isX2 - isX1) ^ 2 + (isY2 - isY1) ^ 2))
Select Case linelen
Case Is <= minlength 'shorter, draw solid line
MoveToEx ishDC, isX1, isY1, isPoint
LineTo ishDC, isX2, isY2
SUPERLINE = 0 'line too short, dot and dashes can't be drawn
Case Else 'longer, can draw dashed/dotted line
SUPERLINE = 1 'OK
segmenthowmany = linelen \ segmentlen
segmentoflineX = (isX2 - isX1) \ segmenthowmany
segmentoflineY = (isY2 - isY1) \ segmenthowmany
If (isY2 - isY1) <> 0 Then 'avoid division by 0
istn = (isX2 - isX1) / (isY2 - isY1)
isarc = Atn(istn)
Else 'pi/2
isarc = Atn(1) * 2 * Sgn(isX2 - isX1)
End If
dashprojectionX = dashlen * Sin(isarc)
dashprojectionY = dashlen * Cos(isarc)
dotprojectionX = dotlen * Sin(isarc)
dotprojectionY = dotlen * Cos(isarc)
dashdotintervalprojectionX = dashdotintervallen * Sin(isarc)
dashdotintervalprojectionY = dashdotintervallen * Cos(isarc)
For a = 1 To segmenthowmany
DoEvents
Select Case isStyle
Case PS_DASH
movetoX = isX1 + segmentoflineX * (a - 1)
movetoY = isY1 + segmentoflineY * (a - 1)
MoveToEx ishDC, movetoX, movetoY, isPoint
LineTo ishDC, movetoX + dashprojectionX, movetoY + dashprojectionY
Case PS_DOT
movetoX = isX1 + segmentoflineX * (a - 1)
movetoY = isY1 + segmentoflineY * (a - 1)
MoveToEx ishDC, movetoX, movetoY, isPoint
LineTo ishDC, movetoX + dotprojectionX, movetoY + dotprojectionY
Case PS_DASHDOT
'dash
movetoX = isX1 + segmentoflineX * (a - 1)
movetoY = isY1 + segmentoflineY * (a - 1)
MoveToEx ishDC, movetoX, movetoY, isPoint
LineTo ishDC, movetoX + dashprojectionX, movetoY + dashprojectionY
'move to middle of left space of segment
movetoX = movetoX + dashprojectionX + (segmentoflineX - dashprojectionX) / 2
movetoY = movetoY + dashprojectionY + (segmentoflineY - dashprojectionY) / 2
MoveToEx ishDC, movetoX, movetoY, isPoint
'dot is always 1 pixel
dotprojectionX = 1
dotprojectionY = 1
'dot
LineTo ishDC, movetoX + dotprojectionX, movetoY + dotprojectionY
Case PS_DASHDOTDOT
'dash
movetoX = isX1 + segmentoflineX * (a - 1)
movetoY = isY1 + segmentoflineY * (a - 1)
MoveToEx ishDC, movetoX, movetoY, isPoint
LineTo ishDC, movetoX + dashprojectionX, movetoY + dashprojectionY
movetoXsave = movetoX
movetoYsave = movetoY
'move to 1/3 of left space of segment
movetoX = movetoX + dashprojectionX + (segmentoflineX - dashprojectionX) / 3
movetoY = movetoY + dashprojectionY + (segmentoflineY - dashprojectionY) / 3
MoveToEx ishDC, movetoX, movetoY, isPoint
'dot is always 1 pixel
dotprojectionX = 1
dotprojectionY = 1
'dot
LineTo ishDC, movetoX + dotprojectionX, movetoY + dotprojectionY
'move to 2/3 of left space of segment
movetoX = movetoXsave + dashprojectionX + (segmentoflineX - dashprojectionX) / 3 * 2
movetoY = movetoYsave + dashprojectionY + (segmentoflineY - dashprojectionY) / 3 * 2
MoveToEx ishDC, movetoX, movetoY, isPoint
'dot
LineTo ishDC, movetoX + dotprojectionX, movetoY + dotprojectionY
End Select
Next
End Select
End Select
SelectObject ishDC, hpenOLD
DeleteObject hpen
ReleaseDC isHwnd, ishDC
End Function
